Products Garland Technology Fiber Taps - Network Splitter

Ethernet network splitters for passive extraction of network data

Fiber Taps are passive coupling elements for safe and reliable network access of network data in optical networks. These TAPS are looped into the fibre optic line and mirror the entire network traffic without introducing a point of failure. These optical TAPS do not require electricity; they are purely passive components and, therefore, untraceable and only detectable by using expensive test equipment. Hackers and other attackers stand no chance and, as a result, the integrity of the diverted data remains unaltered. This is why Network TAPS is increasingly being used in the field of network forensics. How exactly does it work?

Technically, optical TAPS split the light at its arrival and divides it into two fibres. In this case, a large part of the coupled signal remains on the actual network route and the remainder goes to output on a monitoring port for external recording. Highly sensitive prisms are used to split the fibre optic light. As optical fibre TAPS work independent of protocol, the devices can be installed in different network media. TAPS for multimode and single mode network types are available, and the network wavelength and the speed are irrelevant.

The data is being copied transparently and lossless without disturbing the active line. This coupling technology with the prism means that losses naturally arise and need to be considered in the selection of TAPS. Fibre TAPS, for example, are available in 5 different variations and have differing extraction ratios. Devices are available with the "Split-Ratio" 50:50, 60:40, 70:30, 80:20, 90:10. A typical attenuation value of a 70:30 fibre TAPS located on the network side is about 2 dB and 6 dB on the monitoring ports. For other technical details, please refer to the data-sheet or ask us for assistance in helping you to choose the right TAPS for your needs.

M1GMCA_Modular_network_TAP_300

If you are looking for a Fibre TAP with an aggregation function, please look for it here.

Modular Chassis Passive Fiber Network TAPs

Network test access points (TAPs) are hardware tools that allow you to access and monitor your network. The modular passive fiber chassis system supports 1G, 10G, 40G and 100G network speeds.

This high density and high performance monitoring solution accommodates growing data center and enterprise needs for 100G Ethernet networks. The passive fiber modular chassis system features a scalable design allowing you to meet the demands of the network today and tomorrow, while supporting the investment in existing monitoring tools.

Modular TAP chassis supports network speeds: 1G / 10G / 40G / 100G.

Provides space depending on configuration: For 16 to 24 network TAP modules, (24 LC TAP modules, 16 MPO / MTP® TAP modules, 16 BiDi LC TAP modules).

Network Test Access Points (TAPs) sind Hardwaretools, mit denen Sie auf Ihr Netzwerk zugreifen und es überwachen können. Das modulare passive Glasfaser-Chassis-System unterstützt Netzwerkgeschwindigkeiten von 1G, 10G, 40G und 100G.

Diese High-Density- und High-Performance-Monitoring-Lösung erfüllt wachsende Anforderungen von Rechenzentren und Unternehmen für Ethernet-Netzwerke bis 100G. Das modulare Chassis-System mit passiver Glasfaser bietet ein skalierbares Design, mit dem Sie die Anforderungen des Netzwerks von heute und morgen erfüllen und gleichzeitig die Investition in vorhandene Überwachungswerkzeuge unterstützen können.

Chassis unterstützt: 1G / 10G / 40G / 100G Netzwerkgeschwindigkeiten Platziert 16 bis 24 Netzwerk-TAP-Module basierend auf der Konfiguration (24 LC TAP Module, 16 MPO / MTP® TAP Module, 16 BiDi LC TAP Module).

  • Durable all-steel construction for chassis and TAP network modules
  • No power, no heat, no IP address, no MAC address – 100% passive
  • Customize network TAPs to meet the needs of your network
  • Change the network TAP mode during operation or in the future
  • Combine modules by media and / or speeds
  • Supports Singlemode: OS1 / OS2 and Multimode: OM1 / OM2 / OM3 / OM4 / OM5 media for long and short distances
  • The OM5 fiber supports SWDM (Short Wavelength Division Multiplexing). This allows operation of 40 / 100G-SR on LC duplex fibers, giving networks a clear path to migration to 40 / 100G
  • Supports Cisco bi-directional optical technology
  • Supports split ratios of: 90/10, 80/20, 70/30, 60/40, 50/50, 33.3 / 33.3 / 33.3
  • Supports passive replication
  • Designed, manufactured and supported in the United States

Video

Product Catalog

Garland Technology Produktkatalog

Tech Note – MTP und MPO

Tech Note – MTP und MPO

Whitepaper – Network Connectivity

Whitepaper_MTP_MPO_Konnektivitaet_
Model No.Network SpeedPortsNo. of TAPsSplit Ratio* WavelengthsMediaConnector/Mode
FMC-1UFiber Modular Chassis
OS2501M100GbpsSingle-mode Fiber150/501310/1550nmFiber-OS1/OS2Fiber-LC Single-mode Fiber
OS2701M100Gbps 1 70/301310/1550nmFiber-OS1/OS2 Fiber-LC Single-mode Fiber
OM1501M10GbpsMulti-mode Fiber 1 50/50850/1300nm Fiber-OM1/OM2Fiber-LC Multi-mode Fiber
OM1701M10Gbps 170/30850/1300nmFiber-OM1/OM2Fiber-LC Multi-mode Fiber
OM4501M10Gbps 150/50850nmFiber-OM3/OM4/OM5Fiber-LC Multi-mode Fiber
OM4701M10Gbps 170/30850nmFiber-OM3/OM4/OM5Fiber-LC Multi-mode Fiber
OM4501-40GSR4BiDiM40GbpsBiDi 1 50/50 800-950nmFiber-OM3/OM4/OM5Fiber-LC Multi-mode Fiber
OM4701-40GSR4BiDiM40Gbps1 70/30  800-950nmFiber-OM3/OM4/OM5Fiber-LC Multi-mode Fiber
OS2502-BiDiM1G/10G250/501270~1350nm/ 1450~1530nm/ 1510~1590nmFiber-OS2Fiber-LC Single-Mode
OM4501-SR4BM40/100GbpsMTP 12 150/50 850nmFiber-OM3/OM4/OM5MTP-12 Multi-Mode Fiber
OM4701-SR4BM40/100Gbps 170/30850nmFiber-OM3/OM4/OM5MTP-12 Multi-Mode Fiber
OM4501-100GSR10AM100GbpsMTP 241  50/50850nmFiber-OM3/OM4/OM5MTP-24 Multi-Mode Fiber
OM4701-100GSR10AM100Gbps170/30850nmFiber-OM3/OM4/OM5MTP-24 Multi-Mode Fiber
OS23321X3M1G/10GbpsBiDi 133.3 / 33.3 / 33.31310/1550nmFiber-OS2 Fiber-LC Single-mode Fiber
OS2 Fiber supports OS1 & OS2; OM1 Fiber supports OM1 & OM2; OM5 Fiber supports OM3 & OM4 OM3/OM4
PassiveFiberModularChassis-SingleLC-Flow 325x270

Single-mode Fiber

Multi-mode Fiber

MTP-12 Multi-Mode Fiber

MTP-24 Multi-Mode Fiber

BiDi – Multi-mode Fiber

GarlandTechnology-Cisco-Overview-JointSolution-A4
GarlandTechnology-Cisco-Overview-JointSolution2
GarlandTechnology-Cisco-BiDi_Datasheet
Case Study Telecom - FAB (Filtering, Aggregation, Load-Balancing)
Use Cases - Netzwerk Taps
fiber_tap_insertion_loss
  • Easy Installation Plug & Play
  • Completely Passive, No Power
  • Secure – No IP, No MAC, No Hacking
  • Designed, Manufactured, Tested, and Supported in the USA
  • Every Tap is Tested and Certified in Manufacturing Process
  • Supports all of your density requirements
    -1U Rack Shelf holds up to 16 TAPs
    -TAP Module can have 1, 2 or 4 TAPs
    -1U Rack Shelf holds 4 TAP Modules
  • Highest Design LC Fiber TAP in the Industry
    -28 Taps in a 1U Chassis
    -56 Taps in a 1U Chassis
    -Unique Design makes it easy to install LC Cables
  • Multimode 62.5micron OM1
  • Multimode 50micron OM3 & OM4
  • Singlemode 9micron OS1 & OS2
  • 100M, 1Gigabit, 10Gigabit, 40Gigabit, 100Gigabit
  • OC3, OC12, OC48, OC192
  • Split Ratio: 50:50, 60:40, 70:30, 80:20, 90:10
Garland Technology Produktkatalog

Single-mode Passive Fiber Network TAPs

Garland Technology, the leading manufacturer of passive network tap solutions, offers the ultimate space-saving product that accommodates 28 optical fiber taps in a 1U package. This product is also available as a combined solution with 56 taps in a 1U chassis. The first 28 taps are installed at the front and the others at the back. Singlemode or multimode, as well as taps for higher speeds of 40GBit / s or 100GBit / s can be combined in one device and shared with other taps. Fiber Taps from Garland Technology give you 100% visibility of full-duplex traffic and support network types such as 100Mbps, 1Gigabit, 10Gigabit, 40Gigabit, 100Gigabit, OC3, OC12, OC48, and OC192. The fiber taps are passive components that do not require power and are not visible to network hackers. In contrast to a SPAN port you get with a Tap all Layer 1 & 2 information and also the so important for the network analysis CRC errors discharged.

Network test access points (TAPs) are hardware tools that allow you to monitor your network. All fiber breakout TAPs are passive, purpose-built hardware devices that make a 100% copy of your network’s data allowing your monitoring tools to see every bit, byte and packet.® Passive TAPs are non-powered devices that will not cause the live network devices to lose the link between one another if power is lost.

Garland Technology’s high density fiber network TAPs feature an exclusive and cost-saving solution offering more functionality with less rack space.

  • 100% network visibility
  • 100% secure and invisible; no IP address; no Mac address; cannot be hacked
  • Passes physical layer errors
  • Supports tap ‘breakout’ mode
  • Supports Jumbo frames

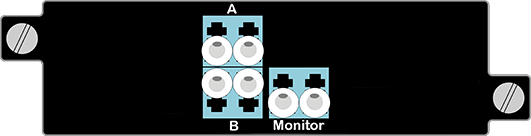

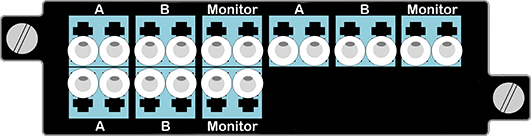

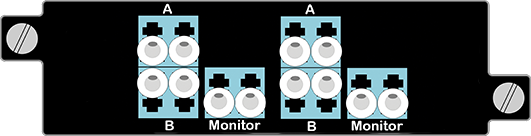

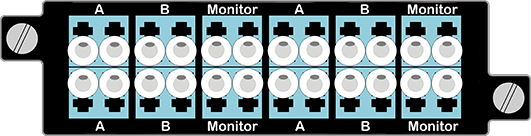

  • 1U rack mount kit holds up to 4 modules, each module can have 1, 2, 3 or 4 TAPs
  • Exclusive 1U chassis holds 28 or 56 TAPs – 56 TAP units are populated front and back
  • Plug & Play easy installation, no configuration; no power source required
Model No.Network SpeedPortsNo. of TAPsPassiveeSplit Ratio*WavelengthsMediaConnector/Mode

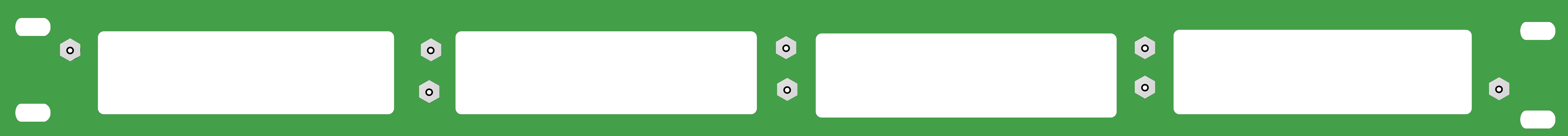

RMP-1U1U Rack Mount Plate1U Rack Mount Kit – Hold up to 4 Modules, each Mod can have 1, 2, 3 or 4 portable TAPs
OS1501Up to 100GSingle-mode Passivee Fiber TAP 1Yes50/501310/1550nmFiber-OS1Fiber-LC Single-mode Fiber
OS1701 Up to 100G Single-mode Passivee Fiber TAP1 Yes 70/30 1310/1550nm Fiber-OS1 Fiber-LC Single-mode Fiber
OS2501 Up to 100G Single-mode Passivee Fiber TAP1 Yes50/501310/1550nm Fiber-OS2 Fiber-LC Single-mode Fiber
OS2701Up to 100G Single-mode Passivee Fiber TAP1 Yes70/301310/1550nm Fiber-OS2 Fiber-LC Single-mode Fiber

OS1502 Up to 100G Single-mode Passivee Fiber TAP2 Yes 50/50 1310/1550nm Fiber-OS1 Fiber-LC Single-mode Fiber
OS1702 Up to 100G Single-mode Passivee Fiber TAP2 Yes 70/30 1310/1550nm Fiber-OS1 Fiber-LC Single-mode Fiber
OS2502 Up to 100G Single-mode Passivee Fiber TAP2 Yes 50/50 1310/1550nm Fiber-OS2 Fiber-LC Single-mode Fiber
OS2702 Up to 100G Single-mode Passivee Fiber TAP2 Yes 70/30 1310/1550nm Fiber-OS2 Fiber-LC Single-mode Fiber

OS1503Up to 100GSingle-mode Passivee Fiber TAP3Yes50/501310/1550nmFiber-OS1Fiber-LC Single-mode Fiber
OS1703Up to 100GSingle-mode Passivee Fiber TAP3Yes70/301310/1550nmFiber-OS1Fiber-LC Single-mode Fiber
OS2503Up to 100GSingle-mode Passivee Fiber TAP3Yes50/501310/1550nmFiber-OS2Fiber-LC Single-mode Fiber
OS2703 Up to 100G Single-mode Passivee Fiber TAP3 Yes 70/30 1310/1550nm Fiber-OS2 Fiber-LC Single-mode Fiber

OS1504Up to 100GSingle-mode Passivee Fiber TAP4Yes50/501310/1550nmFiber-OS1 Fiber-LC Single-mode Fiber
OS1704Up to 100GSingle-mode Passivee Fiber TAP4Yes70/301310/1550nmFiber-OS1 Fiber-LC Single-mode Fiber
OS2504Up to 100GSingle-mode Passivee Fiber TAP4Yes50/501310/1550nmFiber-OS2Fiber-LC Single-mode Fiber
OS2704Up to 100GSingle-mode Passivee Fiber TAP4Yes70/301310/1550nmFiber-OS2Fiber-LC Single-mode Fiber
*Custom split ratios are available in 60/40, 80/20, or 90/10; please inquire

Single-mode Passive Fiber

MM 40G BiDi TAP Flow 21 TAP integrated

High Density Netzwerkfluss

GarlandTechnology-Cisco-Overview-JointSolution-A4
GarlandTechnology-Cisco-Overview-JointSolution2
GarlandTechnology-Cisco-BiDi_Datasheet
Case Study Telecom - FAB (Filtering, Aggregation, Load-Balancing)
Use Cases - Netzwerk Taps
fiber_tap_insertion_loss
  • Easy Installation Plug & Play
  • Completely Passive, No Power
  • Secure – No IP, No MAC, No Hacking
  • Designed, Manufactured, Tested, and Supported in the USA
  • Every Tap is Tested and Certified in Manufacturing Process
  • Supports all of your density requirements
    -1U Rack Shelf holds up to 16 TAPs
    -TAP Module can have 1, 2 or 4 TAPs
    -1U Rack Shelf holds 4 TAP Modules
  • Highest Design LC Fiber TAP in the Industry
    -28 Taps in a 1U Chassis
    -56 Taps in a 1U Chassis
    -Unique Design makes it easy to install LC Cables
  • Multimode 62.5micron OM1
  • Multimode 50micron OM3 & OM4
  • Singlemode 9micron OS1 & OS2
  • 100M, 1Gigabit, 10Gigabit, 40Gigabit, 100Gigabit
  • OC3, OC12, OC48, OC192
  • Split Ratio: 50:50, 60:40, 70:30, 80:20, 90:10
Garland Technology Produktkatalog

Multi-mode Passive Fiber Network TAPs

Network test access points (TAPs) are hardware tools that allow you to monitor your network. All fiber breakout TAPs are passive, purpose-built hardware devices that make a 100% copy of your network’s data allowing your monitoring tools to see every bit, byte and packet.® Passive TAPs are non-powered devices that will not cause the live network devices to loose the link between one another if power is lost.

  • 100% network visibility
  • 100% secure and invisible; no IP address; no Mac address; cannot be hacked
  • Passes physical layer errors
  • Supports tap ‘breakout’ mode
  • Supports Jumbo frames
  • 1U rack mount kit holds up to 4 modules, each module can have 1, 2, 3 or 4 TAPs
  • Plug & Play easy installation, no configuration; no power source required
Model No.Network SpeedPortsNo. of TAPsPassiveSplit Ratio*WavelengthsMediaConnector/Mode
RMP-1U1U Rack Mount Plate1U Rack Mount Kit – Hold up to 4 Modules, each Module can have 1, 2, 3 or 4 portable TAPs
OM1501Up to 10GMulti-mode Passive Fiber TAP 1Yes50/50850/1300nmFiber-OM1Fiber-LC Multi-mode Fiber
OM1701 Up to 10G Multi-mode Passive Fiber TAP1 Yes 70/30 850/1300nm Fiber-OM1 Fiber-LC Multi-mode Fiber
OM3501 Up to 10G Multi-mode Passive Fiber TAP1 Yes 50/50 850/1300nm Fiber-OM3 Fiber-LC Multi-mode Fiber
OM4501 Up to 10G Multi-mode Passive Fiber TAP1 Yes 50/50 850nm Fiber-OM3/OM4/OM5 Fiber-LC Multi-mode Fiber
OM4701 Up to 10G Multi-mode Passive Fiber TAP1 Yes 70/30 850nmFiber-OM3/OM4/OM5Fiber-LC Multi-mode Fiber

OM1502 Up to 10G Multi-mode Passive Fiber TAP2Yes 50/50 850/1300nm Fiber-OM1 Fiber-LC Multi-mode Fiber
OM1702 Up to 10G Multi-mode Passive Fiber TAP2 Yes 70/30 850/1300nm Fiber-OM1 Fiber-LC Multi-mode Fiber
OM3502 Up to 10G Multi-mode Passive Fiber TAP2 Yes 50/50 850/1300nm Fiber-OM3 Fiber-LC Multi-mode Fiber
OM4502Up to 10GMulti-mode Passive Fiber TAP2Yes50/50850nmFiber-OM3/OM4/OM5Fiber-LC Multi-mode Fiber
OM4702Up to 10GMulti-mode Passive Fiber TAP2Yes70/30850nmFiber-OM3/OM4/OM5Fiber-LC Multi-mode Fiber

OM1503Up to 10GMulti-mode Passive Fiber TAP3Yes50/50850/1300nmFiber-OM1Fiber-LC Multi-mode Fiber
OM1703Up to 10GMulti-mode Passive Fiber TAP3Yes70/30850/1300nmFiber-OM1Fiber-LC Multi-mode Fiber
OM3503Up to 10GMulti-mode Passive Fiber TAP3Yes50/50850/1300nmFiber-OM3Fiber-LC Multi-mode Fiber
OM4503Up to 10GMulti-mode Passive Fiber TAP3Yes50/50850nmFiber-OM3/OM4/OM5Fiber-LC Multi-mode Fiber
OM4703Up to 10GMulti-mode Passive Fiber TAP3Yes70/30850nmFiber-OM3/OM4/OM5Fiber-LC Multi-mode Fiber

OM1504Up to 10GMulti-mode Passive Fiber TAP4Yes50/50850/1300nmFiber-OM1Fiber-LC Multi-mode Fiber
OM1704Up to 10GMulti-mode Passive Fiber TAP4Yes70/30850/1300nmFiber-OM1Fiber-LC Multi-mode Fiber
OM3504Up to 10GMulti-mode Passive Fiber TAP4Yes50/50850/1300nmFiber-OM3Fiber-LC Multi-mode Fiber
OM4504Up to 10GMulti-mode Passive Fiber TAP4Yes50/50850nmFiber-OM3/OM4/OM5Fiber-LC Multi-mode Fiber
OM4704Up to 10GMulti-mode Passive Fiber TAP4Yes70/30850nmFiber-OM3/OM4/OM5Fiber-LC Multi-mode Fiber
*Custom split ratios are available in 60/40, 80/20, or 90/10; please inquire. OM3/OM4

Single-mode Passive Fiber

MM 40G BiDi TAP Flow 21 TAP integrated

High Density Netzwerkfluss

GarlandTechnology-Cisco-Overview-JointSolution-A4
GarlandTechnology-Cisco-Overview-JointSolution2
GarlandTechnology-Cisco-BiDi_Datasheet
Case Study Telecom - FAB (Filtering, Aggregation, Load-Balancing)
Use Cases - Netzwerk Taps
fiber_tap_insertion_loss
  • Easy Installation Plug & Play
  • Completely Passive, No Power
  • Secure – No IP, No MAC, No Hacking
  • Designed, Manufactured, Tested, and Supported in the USA
  • Every Tap is Tested and Certified in Manufacturing Process
  • Supports all of your density requirements
    -1U Rack Shelf holds up to 16 TAPs
    -TAP Module can have 1, 2 or 4 TAPs
    -1U Rack Shelf holds 4 TAP Modules
  • Highest Design LC Fiber TAP in the Industry
    -28 Taps in a 1U Chassis
    -56 Taps in a 1U Chassis
    -Unique Design makes it easy to install LC Cables
  • Multimode 62.5micron OM1
  • Multimode 50micron OM3 & OM4
  • Singlemode 9micron OS1 & OS2
  • 100M, 1Gigabit, 10Gigabit, 40Gigabit, 100Gigabit
  • OC3, OC12, OC48, OC192
  • Split Ratio: 50:50, 60:40, 70:30, 80:20, 90:10
Garland Technology Produktkatalog

40G and 100G Fiber Netzwork Taps with MTP plug

Network test access points (TAPs) are hardware tools that allow you to monitor your network. All fiber breakout TAPs are passive, purpose-built hardware devices that make a 100% copy of your network’s data allowing your monitoring tools to see every bit, byte and packet.® Passive TAPs are non-powered devices that will not cause the live network devices to loose the link between one another if power is lost.

  • 100% network visibility
  • 100% secure and invisible; no IP address; no Mac address; cannot be hacked
  • Passes physical layer errors
  • Supports tap ‘breakout’ mode
  • Supports Jumbo frames
  • 1U rack mount kit holds up to 4 modules, each module can have 1, 2, 3 or 4 TAPs
  • Plug & Play easy installation, no configuration; no power source required
Model No.Network SpeedPortsNo. of TAPsPassiveSplit Ratio*WavelengthsMediaConnector/Mode
RMP-1U1U Rack Mount Plate1U Rack Mount Kit – Hold up to 4 Modules, each Mod can have 1, 2 or 3 portable TAPs
OM4501-SR4B 40G/100GOM4501-40GSR4B 1Yes50/50850nmFiber-OM3/OM4/OM5MTP-12 Multi-mode Fiber
OM4701-SR4B40G/100GOM4701-40GSRB1Yes70/30850nmFiber-OM3/OM4/OM5MTP-12 Multi-mode Fiber
OM4502-SR4B40G/100GOM4502-40GSR4B2Yes50/50850nmFiber-OM3/OM4/OM5MTP-12 Multi-mode Fiber
OM4702-SR4B 40G/100GOM4702-40GSR4B2 Yes 70/30850nm Fiber-OM3/OM4/OM5MTP-12 Multi-mode Fiber
OM4503-SR4B 40G/100GOM4503-40GSR4B3 Yes 50/50 850nm Fiber-OM3/OM4/OM5MTP-12 Multi-Mode Fiber
OM4703-SR4B 40G/100GOM4703-40GSR4B3 Yes 70/30 850nm Fiber-OM3/OM4/OM5MTP-12 Multi-mode Fiber

OM4501-100GSR10A100GOM4501-100GSR10A1Yes50/50850nmFiber-OM3/OM4/OM5MTP-24 Multi-mode Fiber
OM4701-100GSR10A100GOM4701-100GSR10A1Yes70/30850nmFiber-OM3/OM4/OM5MTP-24 Multi-mode Fiber
OM4502-100GSR10A100GOM4502-100GSR10A2Yes50/50850nmFiber-OM3/OM4/OM5MTP-24 Multi-mode Fiber
OM4702-100GSR10A100GOM4702-100GSR10A2Yes70/30850nmFiber-OM3/OM4/OM5MTP-24 Multi-mode Fiber
OM4503-100GSR10A100GOM4503-100GSR10A3Yes50/50850nmFiber-OM3/OM4/OM5MTP-24 Multi-mode Fiber
OM4703-100GSR10A100GOM4703-100GSR10A3Yes70/30850nmFiber-OM3/OM4/OM5MTP-24 Multi-mode Fiber
*Custom split ratios are available in 60/40, 80/20, or 90/10; please inquire OM3/OM4* Available in OM5

MTP-12 Multi-mode Fiber

MTP-24 Multi-mode Fiber

GarlandTechnology-Cisco-Overview-JointSolution-A4
GarlandTechnology-Cisco-Overview-JointSolution2
GarlandTechnology-Cisco-BiDi_Datasheet
Case Study Telecom - FAB (Filtering, Aggregation, Load-Balancing)
Use Cases - Netzwerk Taps
fiber_tap_insertion_loss
  • Easy Installation Plug & Play
  • Completely Passive, No Power
  • Secure – No IP, No MAC, No Hacking
  • Designed, Manufactured, Tested, and Supported in the USA
  • Every Tap is Tested and Certified in Manufacturing Process
  • Supports all of your density requirements
    -1U Rack Shelf holds up to 16 TAPs
    -TAP Module can have 1, 2 or 4 TAPs
    -1U Rack Shelf holds 4 TAP Modules
  • Highest Design LC Fiber TAP in the Industry
    -28 Taps in a 1U Chassis
    -56 Taps in a 1U Chassis
    -Unique Design makes it easy to install LC Cables
  • Multimode 62.5micron OM1
  • Multimode 50micron OM3 & OM4
  • Singlemode 9micron OS1 & OS2
  • 100M, 1Gigabit, 10Gigabit, 40Gigabit, 100Gigabit
  • OC3, OC12, OC48, OC192
  • Split Ratio: 50:50, 60:40, 70:30, 80:20, 90:10
Garland Technology Produktkatalog

BiDi Passive Fiber Network TAPs

Network test access points (TAPs) are hardware tools that allow you to monitor your network. All fiber breakout TAPs are passive, purpose-built hardware devices that make a 100% copy of your network’s data allowing your monitoring tools to see every bit, byte and packet.® Passive TAPs are non-powered devices that will not cause the live network devices to loose the link between one another if power is lost.

  • Exclusive 21 TAP 1U high density solution
  • Unique design provides the flexibility to TAP multi-mode OM3/OM4/OM5 fiber types
  • 100% network visibility
  • 100% secure and invisible; no IP address; no Mac address; cannot be hacked
  • Passes physical layer errors
  • Supports tap ‘breakout’ mode
  • 1U rack mount kit holds up to 4 modules, each module can have 1, 2 or 3 TAPs
  • Plug & Play easy installation, no configuration; no power source required
Model No.Network SpeedPortsNo. of TAPsSplit Ratio*WavelengthsMediaConnector/Mode
RMP-1U1U Rack Mount Plate1U Rack Mount Kit – Hold up to 4 Modules, each Module can have 1, 2 or 3 portable TAPs
OM4501-40GSR4BiDiUp to 40GMulti-mode BiDi TAP 150/50800/950nmFiber-OM3/OM4/OM5Fiber-LC Multi-mode Fiber
OM4502-40GSR4BiDiUp to 40G Dual Multi-Mode BiDi TAP 250/50 800/950nm Fiber-OM3/OM4/OM5Fiber-LC Multi-mode Fiber
OM4503-40GSR4BiDi Up to 40G Tri Multi-mode BiDi TAP3 50/50 800/950nm Fiber-OM3/OM4/OM5Fiber-LC Multi-mode Fiber
OM45021-40GSR4BiDi Up to 40G 21 TAP BiDi Solution21 50/50800/950nm Fiber-OM3/OM4/OM5Fiber-LC Multi-mode Fiber
OM4701-40GSR4BiDi Up to 40G Multi-mode BiDi TAP1 70/30 800/950nm Fiber-OM3/OM4/OM5Fiber-LC Multi-mode Fiber
OM4702-40GSR4BiDi Up to 40G Dual Multi-Mode BiDi TAP2  70/30800/950nm Fiber-OM3/OM4/OM5Fiber-LC Multi-mode Fiber
OM4703-40GSR4BiDi  Up to 40G Tri Multi-mode BiDi TAP3 70/30 800/950nm Fiber-OM3/OM4/OM5Fiber-LC Multi-mode Fiber
OM47021-40GSR4BiDi Up to 40G 21 TAP BiDi Solution21 70/30 800/950nm Fiber-OM3/OM4/OM5Fiber-LC Multi-mode Fiber
OS2502-BiDi1G/10G Single SM BiDi Passive Fiber 2TAP250/50

1270~1350nm/
1450~1530nm/
1510~1590nm



Fiber-OS2



Fiber-LC Single-Mode

OS2504-BiDi1G/10G Dual SM BiDi Passive Fiber 4TAP4 50/50

1270~1350nm/
1450~1530nm/
1510~1590nm



Fiber-OS2



Fiber-LC Single-Mode

OS2506-BiDi1G/10G Tri SM BiDi Passive Fiber 6TAP6 50/501270~1350nm/

1450~1530nm/
1510~1590nm



Fiber-OS2



Fiber-LC Single-Mode

12 Fiber BiDi TAP Flow

MM 40G BiDi TAP Flow 21 TAP integrated

High Density Network Flow

GarlandTechnology-Cisco-Overview-JointSolution-A4
GarlandTechnology-Cisco-Overview-JointSolution2
GarlandTechnology-Cisco-BiDi_Datasheet
Case Study Telecom - FAB (Filtering, Aggregation, Load-Balancing)
Use Cases - Netzwerk Taps
fiber_tap_insertion_loss
  • Easy Installation Plug & Play
  • Completely Passive, No Power
  • Secure – No IP, No MAC, No Hacking
  • Designed, Manufactured, Tested, and Supported in the USA
  • Every Tap is Tested and Certified in Manufacturing Process
  • Supports all of your density requirements
    -1U Rack Shelf holds up to 16 TAPs
    -TAP Module can have 1, 2 or 4 TAPs
    -1U Rack Shelf holds 4 TAP Modules
  • Highest Design LC Fiber TAP in the Industry
    -28 Taps in a 1U Chassis
    -56 Taps in a 1U Chassis
    -Unique Design makes it easy to install LC Cables
  • Multimode 62.5micron OM1
  • Multimode 50micron OM3 & OM4
  • Singlemode 9micron OS1 & OS2
  • 100M, 1Gigabit, 10Gigabit, 40Gigabit, 100Gigabit
  • OC3, OC12, OC48, OC192
  • Split Ratio: 50:50, 60:40, 70:30, 80:20, 90:10
Garland Technology Produktkatalog

Passive Regeneration Network TAPs

Splits one single-mode, full duplex input to three outputs

Network test access points (TAPs) are hardware tools that allow you to access and monitor your network. Replication TAPs are purpose-built hardware devices that let you see every bit, byte and packet.®

Passive Replication TAPs are used to copy 100% full duplex traffic; the replicated traffic can then be sent to multiple monitoring appliances to analyze your network. Replications TAPs come with a fixed configuration, taking one full duplex input and delivering three copies of the network traffic.

  • Replicate any network traffic
  • Portable, Plug & Play
  • Easy configuration, no power required
  • Supports jumbo frames
  • Optional one or two segment configurations per module
  • Passes physical errors
  • 100% secure and transparent, no IP address, no MAC address; cannot be hacked
Model No.Network SpeedPortsNetworkMonitorNo. of TAPsSplit Ratio*WavelengthsMediaConnector/Mode
RMP-1U1U 4 Slot Rack Mount Plate 1U Rack Mount Kit – Hold up to 4 Modules, each Module can have 1, 2, 3 or 4 TAPs
 OS23321X31G/10GSingle-mode 1 TAP1 LC3 LC133.3/33.3/33.31310/1550nmFiber-OS2Fiber LC Single-Mode Fiber
OS23341X3 1G/10GSingle-Mode 2 TAPs1 LC3 LC233.3/33.3/33.31310/1550nmFiber-OS2Fiber LC Single-Mode Fiber
OS23361X3 1G/10GSingle-Mode 3 TAPs1 LC3 LC333.3/33.3/33.31310/1550nmFiber-OS2Fiber LC Single-Mode Fiber
 OS233211X31G/10GSingle-Mode High Density TAPs1 LC3 LC2133.3/33.3/33.31310/1550nmFiber-OS2Fiber LC Single-Mode Fiber
FMC-1UFiber Modular Chassis
OS23321X3M1G/10GPassive Fiber Modula rChassis- 1 LC 3 LC2 33.3/33.3/33.3 1310/1550nmFiber-OS2Fiber LC Single-Mode Fiber
Garland Technology

Passive Regeneration Netzwerkfluss

GarlandTechnology-Cisco-Overview-JointSolution-A4
GarlandTechnology-Cisco-Overview-JointSolution2
GarlandTechnology-Cisco-BiDi_Datasheet
Case Study Telecom - FAB (Filtering, Aggregation, Load-Balancing)
Use Cases - Netzwerk Taps
fiber_tap_insertion_loss
  • Easy Installation Plug & Play
  • Completely Passive, No Power
  • Secure – No IP, No MAC, No Hacking
  • Designed, Manufactured, Tested, and Supported in the USA
  • Every Tap is Tested and Certified in Manufacturing Process
  • Supports all of your density requirements
    -1U Rack Shelf holds up to 16 TAPs
    -TAP Module can have 1, 2 or 4 TAPs
    -1U Rack Shelf holds 4 TAP Modules
  • Highest Design LC Fiber TAP in the Industry
    -28 Taps in a 1U Chassis
    -56 Taps in a 1U Chassis
    -Unique Design makes it easy to install LC Cables
  • Multimode 62.5micron OM1
  • Multimode 50micron OM3 & OM4
  • Singlemode 9micron OS1 & OS2
  • 100M, 1Gigabit, 10Gigabit, 40Gigabit, 100Gigabit
  • OC3, OC12, OC48, OC192
  • Split Ratio: 50:50, 60:40, 70:30, 80:20, 90:10
Garland Technology Produktkatalog

We will be happy to consult you and look forward to hearing from you!
