QSFP28 Port(s)
SFP28
25G Ethernet Network 48 Port Packet Broker System PacketLion NX-PBPL-1L
PacketLion NX-PBPL-1L

8x 100G Ports

The PacketLion NX-PBPL-1L is a purpose-built network packet broker designed for use in top-of-rack applications and network perimeter use. The system can be used to optimize port utilization of existing infrastructure, or as a stand-alone device in L2-L4 filtering applications. To ensure seamless integration into your monitoring infrastructure, all PacketLions offer a full API interface using NETCONF.

There are no additional license fees per port and the device is compatible with MSA compliant SFP28 or QSFP28 pluggables / transceivers. Flexible port speeds (port splitting) for the 8 additional QSFP28 ports can be scaled according to network requirements (10G / 25G / 50G) and can be changed within the interface.

Technical Specifications

  • 48x 1G/10G/25G SFP28 ports and 8x 1G/10G/25G/40G/100G QSFP28 ports
  • 16x 50G or 32x 10G/25G possible via fan out cable on QSFP28 ports
  • Flexible port mapping (1:1, N:N, N:1, 1:N)
  • Aggregation of 1G, 10G, 25G, 40G, 50G and 100G network ports
  • Stacking (without additional fees) of multiple Network Packet Broker systems through a single pane of glass and as one logical unit
  • Support for filtering rules (MAC, VLAN, IPv4/IPv6, TCP/UDP, DSCP, TCP flags, MPLS)
  • Filtering within a tunnel (GTP, L2TP, MPLS, GRE, etc.)
  • Aggregation and regeneration of all network traffic
  • Support for user-defined filtering rules (UDF)
  • Multiple management options (CLI, SSH, SNMP V2/V3, WEB UI, Net CONF and REST API)
  • Line rate performance without packet loss
  • Non-blocking backplane architecture with N+1 redundancy
  • Support for L2GRE tunneling protocol
  • Load balancing based on 5-tuple criteria
  • Port splitting (simplex mode)
  • Port Labeling
  • Timestamping
  • Support for Jumbo Frames
  • Digital Diagnostics Monitoring (DDM)
  • Radius and TACACS+
  • Modular due to SFP28/QSFP28 interfaces
  • Logging through syslog and SNMP traps
  • N+1 redundant, hot-swappable fans
  • Hot-swappable, load-sharing and redundant AC/DC power supplies
  • MPLS Stripping
  • Packet slicing


Download PacketLion NX-PBPL-1L Datasheet
Request a Quote

SERVICE-LEVEL

NEOX Silver or Gold support levelOne year of Silver Support is included with our PacketLion Network Packet Brokers.
However, we offer the option of extending this period or opting for Gold Support instead.
The Gold Support extends the Silver Support by the possibility of an Advanced Replacement in case of a hardware defect.

More details about our service levels can be found here: Web Page – Service Levels

Alternatively, to download our Service Level PDF, please click here: PDF – Service Levels

NEOXPacketLion Hard Case for Transport

We also offer special transport cases/trolleys for our PacketLion models.

NEOXPacketLion Hard Cases/Trolleys for Transport

Customers who viewed this product were also interested in the following products:

PacketTiger

NEXT-GENERATION
Network Packet Brokers

PacketTiger Product Family - Network Packet Broker

PacketTigerVirtual

VIRTUAL
Network Packet Broker

PacketTigerVirtual - Virtual-Network Packet Broker

PacketWolf

ADVANCED
Packet Processing Appliance

PacketWolf Advanced Packet Processing Appliance

Highlights

Up to 400G network speed
Up to
100 Gbps
port-splitting & labeling
Port Splitting
& Port Labeling
l3gre tunneling
L2GRE Tunneling Protocol
Clustering
Stacking
(w/o add. fees)
digital-diagnostics-monitoring
Digital Diagnostics Monitoring
Radius_n-TACACS
Radius & TACACS
Flexible-Port-Assignment
Flexible Port Assignment
tunneling-n-filtering
Tunnel Filtering
Aggregation und Regeneration
Aggregation & Regeneration
Filter-Add  -User Defined Filtering UDF
User-defined
Filter Rules
MPLS-Stripping
MPLS Stripping
Hardware based Nanosecond Timestamping
Timestamping
Packet Slicing & Filtering
Packet Slicing
Entworfen, assembliert, zertifiziert und getestet in Deutschland
Development &
QA in Germany
Contact Us
Unser Online-Shop

DOWNLOADS:

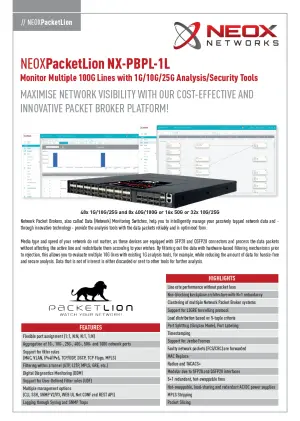

Datasheet-Cover_PacketLion_NX-PBPL-1L_EN
DATASHEET
NEOXPacketLion NX-PBPL-1L

We will be happy to consult you and look forward to hearing from you!
