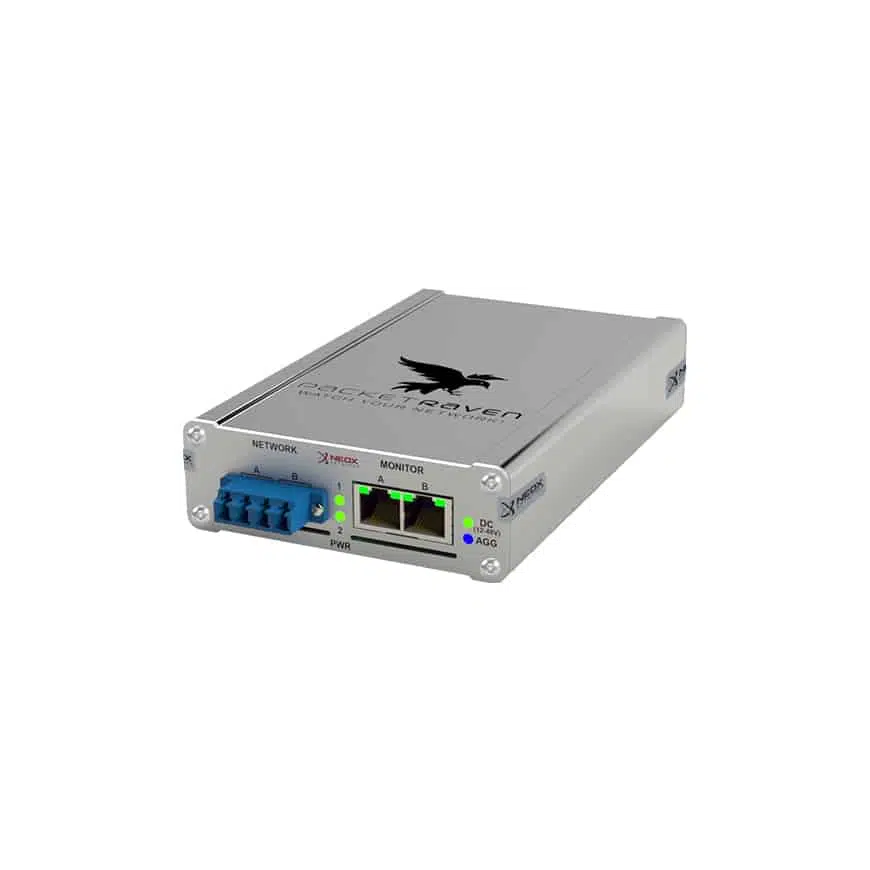

- Specially hardened Fibre Singlemode 1000Base-ZX Network TAP
- LC singlemode OS2 (OS1 compatible) network ports
- 2x RJ45 -monitoring ports
- Split ratio 70/30
- Wavelength 1550nm
- Support aggregation, regeneration and breakout mode
- 2 power supplies included
- Portable or rackmountable
- Matching server rack mounting frame optionally available
- Certifications: CE, FCC, RoHS, WEEE, EN55032 KL. A/B, EN55035, EN61000-3-2, EN61000-3-3, EN61000-6-2
- 10.50 cm x 3.60 cm x 16.40 cm / approx. 0.5 kg
- Developed in Germany
- Including 1 year silver support
Security Highlights
- Invisible in the network – no IP address, no MAC address, cannot be hacked
- Data diode function – 100% reaction-free due to galvanic isolation
- Preconfigured – do not allow subsequent configuration changes
- Secureboot firmware – each time the TAP is started, it checks whether the firmware to be executed has a valid signature and an authorised public key “Key
- Security screws – special tools required
- Security seals – cannot be removed unnoticed
- IEC 62443 and KRITIS approved
- Designed, assembled, certified
