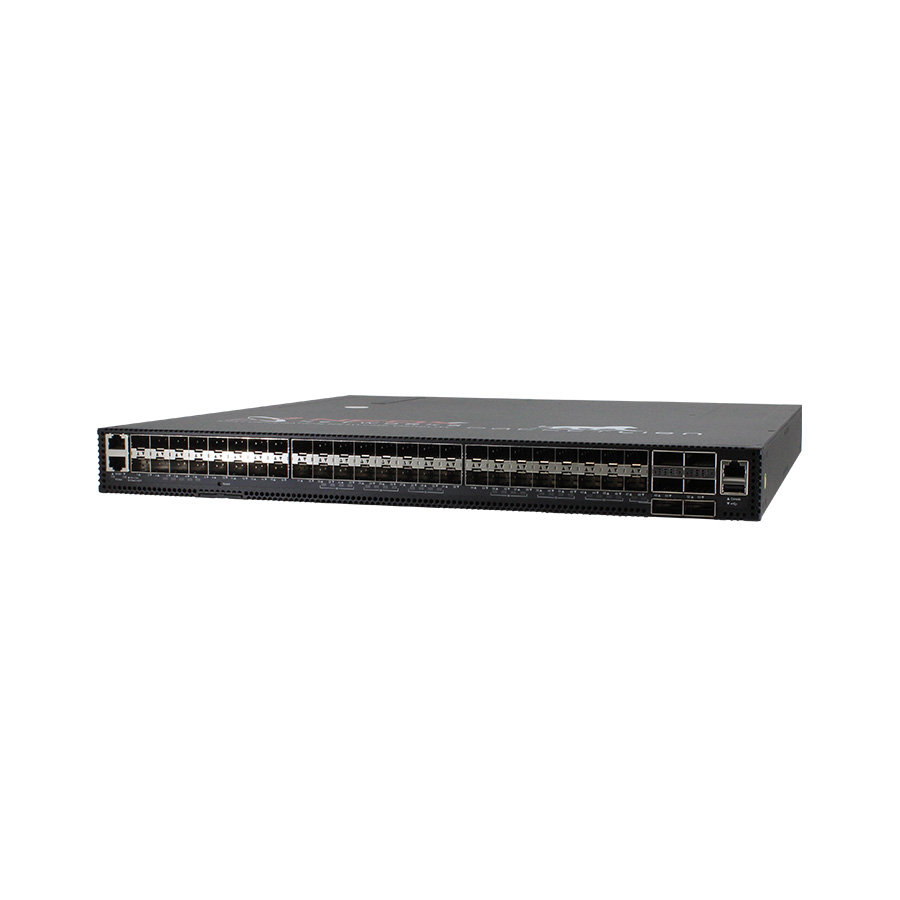

PacketLion Network Packet Broker NX-PBPL-1S2

48x 1G/10G SFP+ Ports and<br>6x 40G/100G QSFP28 Ports - Image 2

48x 1G/10G SFP+ Ports and<br>6x 40G/100G QSFP28 Ports - Image 3

48x 1G/10G SFP+ Ports and<br>6x 40G/100G QSFP28 Ports - Image 4

48x 1G/10G SFP+ Ports and<br>6x 40G/100G QSFP28 Ports - Image 5

48x 1G/10G SFP+ Ports and<br>6x 40G/100G QSFP28 Ports - Image 6

48x 1G/10G SFP+ Ports and<br>6x 40G/100G QSFP28 Ports - Image 7

48x 1G/10G SFP+ Ports and<br>6x 40G/100G QSFP28 Ports - Image 8

48x 1G/10G SFP+ Ports and
6x 40G/100G QSFP28 Ports

Name: PacketLion Network Packet Broker NX-PBPL-1S2 with 1G-100G
Brand: simple
SKU: NX-PBPL-1S2

The PacketLion NX-PBPL-1S2 is a purpose-built network packet broker designed for use in top-of-rack applications and network perimeter use. The system can be used to optimize port utilization of existing infrastructure, or as a stand-alone device in L2-L4 filtering applications.

To ensure seamless integration into your monitoring infrastructure, all PacketLions offer a full API interface using Netconf.

QUOTE REQUEST

SKU: NX-PBPL-1S2 Category: Network Packet Broker with high port density Tags: Network Packet Broker, Network Packet Broker, Packet Broker

48x 1G/10G SFP+ ports
6x 40G/100G QSFP28 ports
TRIDENT 3 platform with 1.08Tbps capacity and 32MB buffer size
Full support for multiple data rates in a 1U platform: 10/100/1000Mbps, 10G, 40G and 100G
Flexible port allocation (1:1, N:N, N:1, 1:N)
Aggregation of 1G, 10G, 40G and 100G network ports
Line rate performance without packet loss
Non-blocking backplane architecture with N+1 redundancy
Support for filter rules (MAC, VLAN, IPv4/IPv6, TCP/UDP, DSCP, TCP flags, MPLS, Ingress, Exgress)
Filtering within a tunnel (GTP, L2TP, MPLS, GRE, PPPoE, VxLAN, etc.)
Aggregation, L2-L4 including 5-tuple filtering
Support for user-defined filter rules (UDF)
Multiple management options (CLI, SSH, SNMP V2/V3, WEB UI, Net CONF and REST API)
Support for L2GRE and VxLAN tunnelling protocol
Load balancing based on 5-tuple criteria
Timestamping
Port splitting (simplex mode)
Port labelling
Support for jumbo frames
Digital Diagnostics Monitoring (DDM)
Radius and TACACS+
MPLS stripping (up to 7 labels)
MAC-Replace
Packet slicing
Support for NETCONF and RESTCONF
Modular through SFP+ and QSFP28 interfaces
Logging through syslog and SNMP traps
Management ports: 1x RJ-45 serial console, 1x RJ45 100/1000Base-T
Increased productivity thanks to drag & drop filter editor
4+1 redundant, hot-swappable fans
2 hot-swappable, load-sharing and redundant AC/DC power supplies
Supports front-to-back and back-to-front airflow models (SKUs)
Stacking of additional PacketLions possible via the PacketDirector
Configure all PacketLion (and PacketTiger) brokers via a centralised management interface with our PacketDirector
Inclusive 1 year Silver Support

Product group	Network Packet Broker
Product type	Hardware Appliance
Vendor	NEOX NETWORKS
Port speed	1G, 10G, 25G, 40G, 50G, 100G
Connector/Port Type	SFP+, QSFP28
