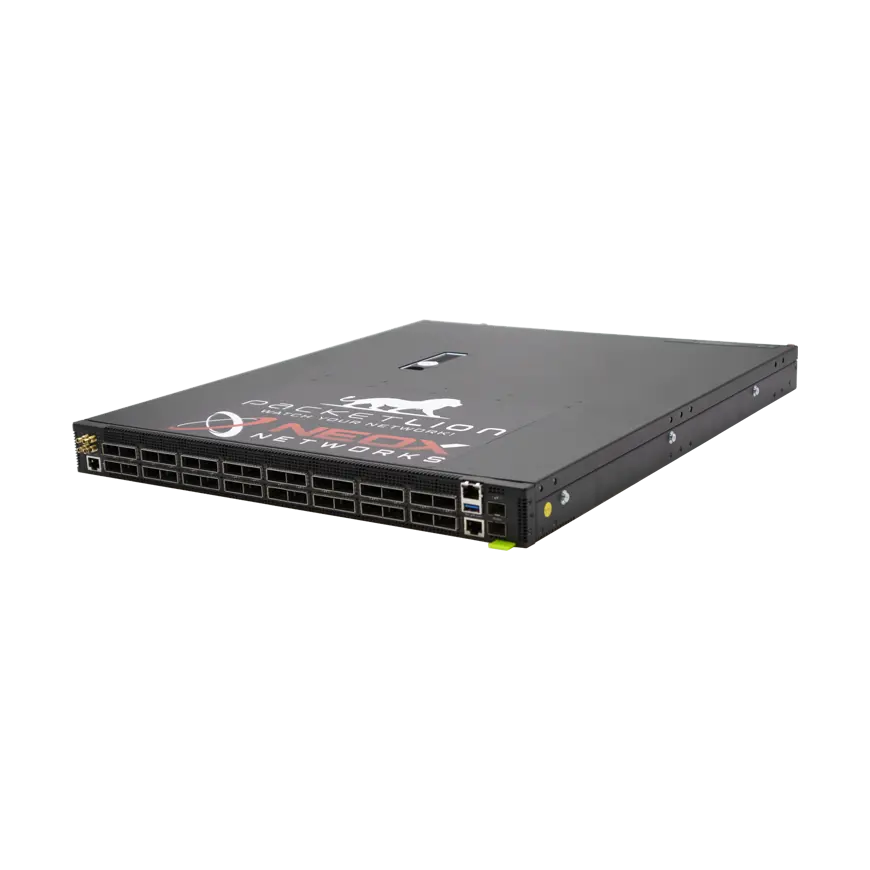

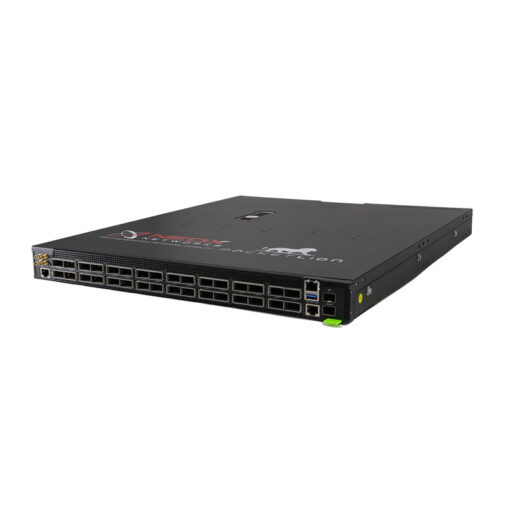

32x 40G/100G/400G QSFP-DD Ports, 128x 10G/25G/50G/100G Fan-out via QSFP-DD Ports, including 1 Year Silver Support
- 32x 40G/100G/400G QSFP-DD ports
- 128x 10G/25G/50G/100G possible via fan out cable on QSFP-DD ports
- Flexible port mapping (1:1, N:N, N:1, 1:N)
- Aggregation of 1G, 10G, 25G, 40G, 100G and 400G network ports
- Support for filtering rules (MAC, VLAN, IPv4/IPv6, TCP/UDP, DSCP, TCP flags, MPLS)
- Filtering within a tunnel (GTP, L2TP, MPLS, GRE, etc.)
- Aggregation and regeneration of all network traffic
- Support for user-defined filtering rules (UDF)
- Multiple management options (CLI, SSH, SNMP V2/V3, WEB UI, Net CONF and REST API)
- Line rate performance without packet loss
- Non-blocking backplane architecture with N+1 redundancy
- Clustering of multiple Network Packet Broker systems
- Support for L3GRE tunneling protocol
- Load balancing based on 5-tuple criteria
- Port splitting (simplex mode)
- Port Labeling
- Support for Jumbo Frames
- Faulty network packets (FCS/CRC) are forwarded
- Digital Diagnostics Monitoring (DDM)
- Radius and TACACS+
- Modular due to SFP+/QSFP28 interfaces
- Logging through syslog and SNMP traps
- N+1 redundant, hot-swappable fans
- Hot-swappable, load-sharing and redundant AC/DC power supplies
- Packet slicing
