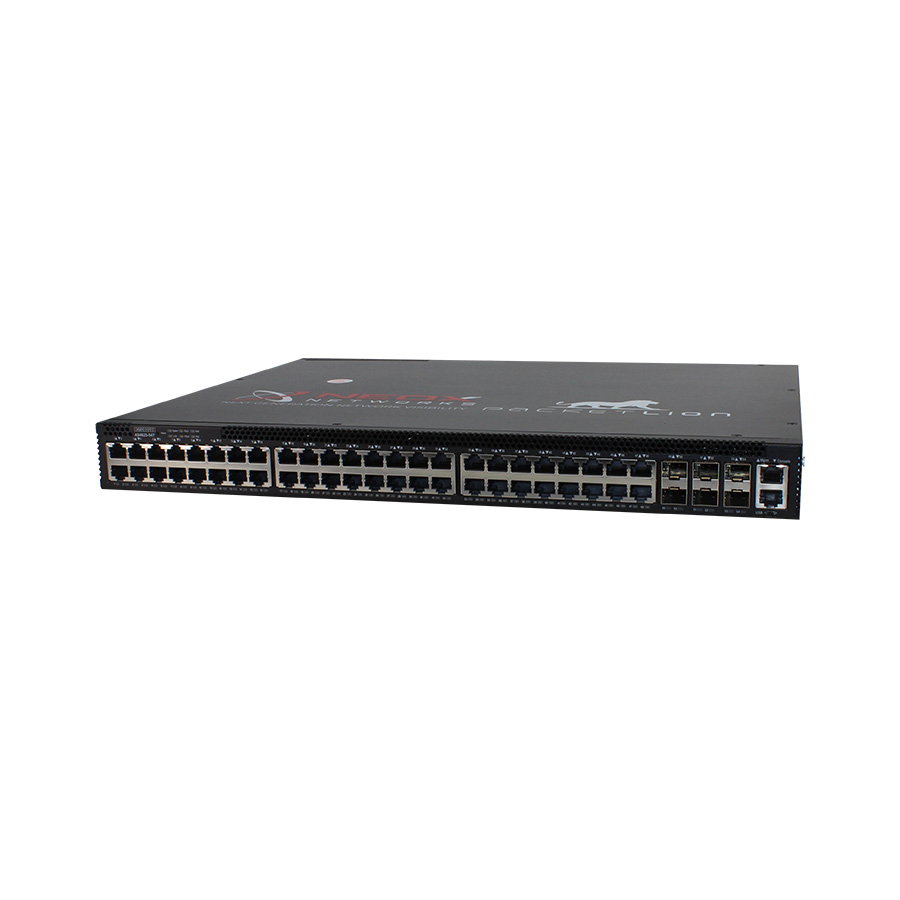

PacketLion 1SC 10M/100M/1000M/10G Network-Packet-Broker

48x 10/100/1000M RJ45 Ports and 6x 1/10G SFP+ Ports - Image 2

48x 10/100/1000M RJ45 Ports and 6x 1/10G SFP+ Ports - Image 3

48x 10/100/1000M RJ45 Ports and 6x 1/10G SFP+ Ports - Image 4

48x 10/100/1000M RJ45 Ports and 6x 1/10G SFP+ Ports - Image 5

48x 10/100/1000M RJ45 Ports and 6x 1/10G SFP+ Ports - Image 6

48x 10/100/1000M RJ45 Ports and 6x 1/10G SFP+ Ports - Image 7

48x 10/100/1000M RJ45 Ports and 6x 1/10G SFP+ Ports - Image 8

48x 10/100/1000M RJ45 Ports and 6x 1/10G SFP+ Ports

The PacketLion NX-PBPL-1SC is a purpose-built network packet broker designed for use in top-of-rack applications and network perimeter use. The system can be used to optimize port utilization of existing infrastructure, or as a stand-alone device in L2-L4 filtering applications.

To ensure seamless integration into your monitoring infrastructure, all PacketLions offer a full API interface using Netconf.

QUOTE REQUEST

48x 10/100/1000M RJ45 Ports
6x 1G/10G SFP+ Ports
TRIDENT 3 platform with 216GBps capacity and 4MB Buffer Size
Full range of rates supported in a 1U platform: 10/100/1000Mbps and 1G/10G
Flexible port assignment (1:1, N:N, N:1, 1:N)
Aggregation of 10/100/1000M, 1G- and 10G network ports
Line rate performance without packet loss
Non-blocking backplane architecture with N+1 redundancy
Support for filter rules (MAC, VLAN, IPv4/IPv6, TCP/UDP, DSCP, TCP Flags, MPLS, Ingress, Exgress)
Filtering within a tunnel (GTP, L2TP, MPLS, GRE, VxLAN, etc.)
Aggregation, L2-L4 including 5-tuple Filtering
Support for user defined filter rules (UDF)
Multiple management options (CLI, SSH, SNMP V2/V3, WEB UI, Net CONF und REST API)
Support for L2GRE and VxLAN tunneling protocol
Load distribution based on 5-tuple criteria
Timestamping
Port Splitting (Simplex Modus)
Port Labeling
Support for Jumbo Frames
Digital Diagnostics Monitoring (DDM)
Radius and TACACS+
MAC Replace
Packet Slicing
Support for NETCONF and RESTCONF
Logging through Syslog and SNMP Traps
Management ports: 1x RJ-45 serial console, 1x RJ45 100/1000Base-T
Increased productivity thanks to drag & drop filter editor
3 hot-swappable fans
2 hot-swappable, load sharing and redundant (80Plus Platinum compliant) AC-/DC power supplies
Supports Front-to-Back and Back-to-Front airflow models (SKUs)
Stacking of further PacketLions possible
Configure all PacketLion (and PacketTiger) brokers from a centralised management interface with our PacketDirector
Inclusive 1 year Silver Support
