PacketFalcon Portable - 100G Packet Capture & Network Forensics Appliance

Ultra-Fast Recording and Analysis of Network Data in Real-Time!

Our PacketFalcon products are powerful recording devices for all types of speeds, enabling IT organizations to analyze, monitor and accurately record traffic without compromise. PacketFalcon allows permanent 24 x 7 access to 1G, 10G, 25G, 40G and 100G network media for detailed analysis, including forensic analysis of past events.

PacketFalcon helps security teams analyze by recording data at key network points while keeping the traffic that can result from this data collection as low as possible. By indexing the data and providing simple and complex filters (Berkeley Packet Filter), PacketFalcon enables security teams to quickly investigate and stop attacks, even when they occur on advanced high-speed networks such as 40G or 100G network topologies.

With NEOXPacketFalcon, even our proven Deep Packet Inspection technology can be quickly and easily brought even to remote network segments.

With its robust construction and Linux as operating system, either 25 TB, 51 TB, 102 TB or 240 TB disk storage and 1G/10G/25G/40G/100G high performance Gigabit Capture Adapter, it is the ideal companion for the mobile network analysis and forensic specialist.

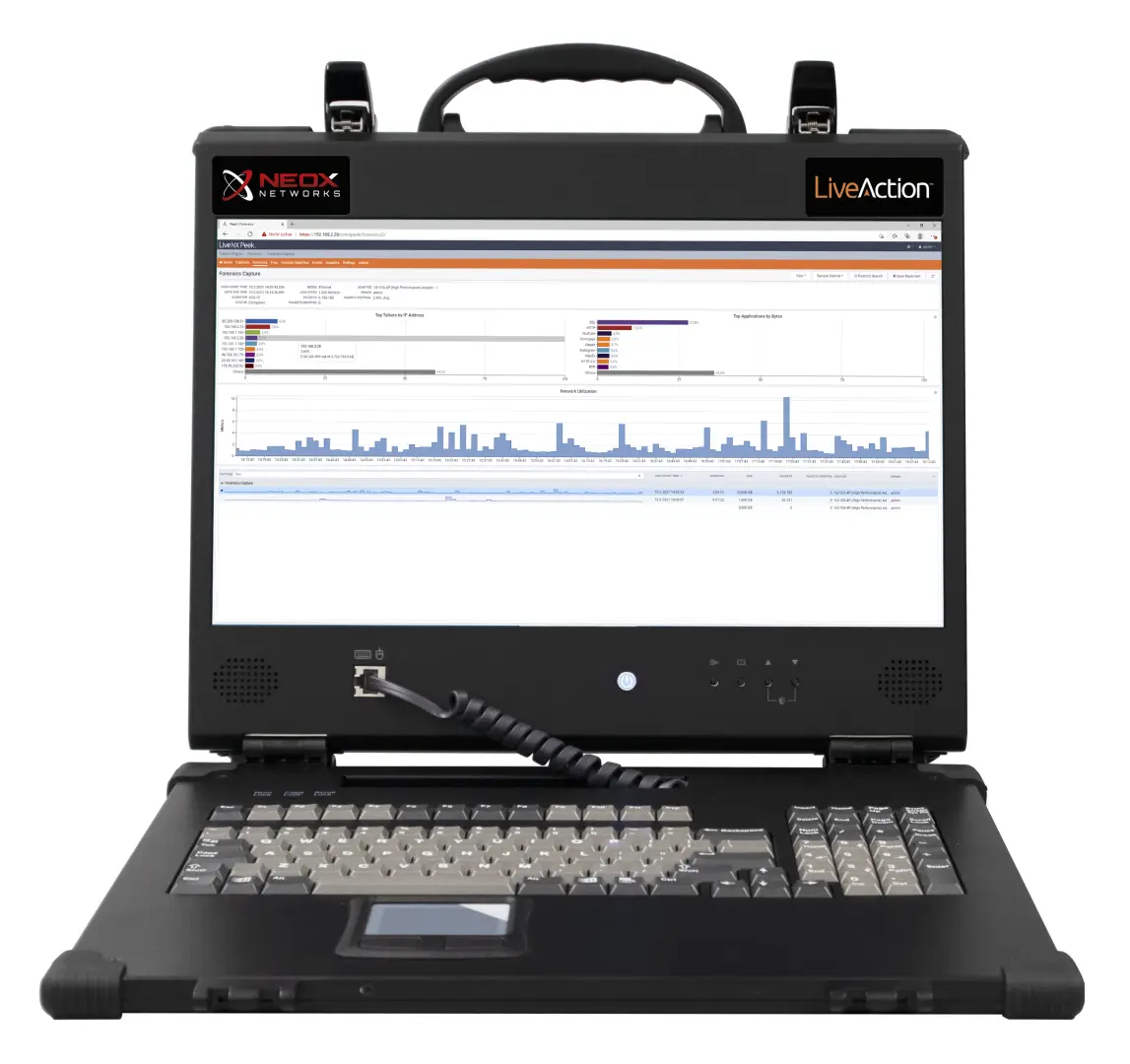

PacketFalcon Portable - 100G Packet Capture & Network Forensics Appliance - Front View

Highlights

  • Lossless recording up to 100 Gbps
  • Acceleration of Mean-Time-To-Resolution (MTTR) through visualization and interaction with meta data, communication flows and the packets themselves
  • Extensive insight into the functioning of networks and applications including application detection/classification
  • Analysis of network traffic in each remote segment, support for 1/10/25/40/100 Gigabit Ethernet
  • Voice and Video over IP quality metrics (MOS Score), including overview statistics and comprehensive analysis of signaling and RTP media flows
  • Packet-based analysis of communication relationships, visualized in intuitive graphical displays
  • Integrated, reliable expert events, indication of anomalies via OSI Layer 2-7
  • Recording of terabytes of traffic without packet loss
  • Hardware/FPGA based Timestamping with nanosecond accuracy
  • PTP support for external time synchronization according to IEEE 1588v2
  • Simultaneous unlimited access via Web GUI
  • Hardware/FPGA based Packet Slicing and Capture Filter
  • Hardware/FPGA based Deduplication
  • 8GB/12 GB hardware buffer for absorbing and analyzing microbursts
  • Patented drill-down function
  • PCAP and PCAPNG support
  • Support for IEEE 1588v2 PTP
  • Trolley included
  • Optional: Hard shell case with CNC milled foam for transport
  • Development and quality assurance in Germany

PacketFalcon - Portable Packet Capturing Appliance - Side View 1
PacketFalcon - Portable Packet Capturing Appliance - Side View 2
PacketFalcon Portable - 100G Packet Capture & Network Forensics Appliance - Sie View
PacketFalcon - Transportkoffer

Hardware Overview

  • High-speed FPGA capture cards for 1G/10G/25G/40G/100G
  • Storage capacity between 25 TB and 240 TB
  • 256 GB DDR4 RAM (optional up to 1024 GB RAM)
  • 17,3“ Full HD 1920 x 1080 Display
  • Robust aluminium housing
  • AMD EPYC CPU
  • 10G Ethernet Management Interface
  • USB 3.0, USB 2.0, Serial Port, Hardware RAID 0, 5, 6, 00, 50, 60
  • Operating System on separate NVMe M2 SSD
  • 16x 2.5″ SSD removable frame
  • Support for hardware-encrypted capture storage, protects your data from unauthorized access. FIPS 140-2 certification and complies with ISO/IEC 27040 and NIST 800-88 standards
  • Keyboard, lockable as display protection during transport
  • Quiet fans, 658 W Power supply
  • Dimensions (W x H x D): 43.5 x 37.3 x 17.8 cm, approx. 15 kg
  • Optional: Hard case with CNC-milled foam for transport

Up to 100G
Lossless recording
up to100G
Up to 3 High Speed FPGA Capture Cards
Up to 3 FPGA
Capture Cards
Storage Capacity
Storage Capacity
up to 240 TB
Hardware-encrypted capture storage
HW Encrypted
Capture Storage
Hardware based Nanosecond Timestamping
FPGA based Nanosecond
Timestamping
Packet Slicing & Filtering
FPGA based Packet Slicing &
Capture Filter
Deduplication
FPGA based
Deduplication
Hardware-RAID 0,5,6,00,50,60
Hardware RAID
0,5,6,00,50,60
PCAP & PCAPNG Support
PCAP & PCAPNG
Support
Optional Transport Case available
Optional
transport case
Made in Germany
Developed & QA
in Germany
Retention Time Calculator
Contact Us
Unser Online-Shop

DOWNLOADS

Brochure
PacketFalcon Portable

PacketFalcon Portable - 100G Packet Capture Appliance - Brochure Download

Datasheet
PacketFalcon Portable

Datasheet - PacketFalcon Portable - Download

Preinstalled software and hardware

The NEOXPacketFalcon is delivered with a combination of leading software and hardware solutions and contains the following components:

  • Network Forensics Software
    • Lossless capture and recording of 1G, 10G, 25G, 40G and 100G network traffic while ensuring full data integrity.
    • Powerful data preparation tools that allow IT technicians to focus on specific time periods and types of traffic.
    • Integrated analytics, including expert analysis and critical network metrics such as top talkers and top protocols, all of which contribute to accelerated investigation of potential attacks.
    • The network data is provided with a hardware time stamp with nanosecond accuracy on arrival. GPS, PPS, PTP and other external time sources are supported.

  • Napatech (capture card)
    The NEOXPacketFalcon can be used simultaneously with three of the following network measurement and capture cards:

    • 1G/10G/25G (High Performance) FPGA Capture Cards (SFP/SFP+/SFP28)
    • 25G/40G/100G (High Performance) FPGA Capture Cards (QSFP+/QSFP28)

Napatech Smart NICs - NT100A01 & NT200A02

For more information about Napatech’s capture cards, click here.

PacketFalcon MODELS & OPTIONS

ARTICLE NO. CPU RAM SSD PORTS
NX-LC-25G-24TB-PT* AMD EPYC 256 GB 24 TB 4x 1G/10G/25G SFP28
NX-LC-25G-51TB-PT* AMD EPYC 256 GB 51 TB 4x 1G/10G/25G SFP28
NX-LC-25G-102TB-PT* AMD EPYC 256 GB 102 TB 4x 1G/10G/25G SFP28
NX-LC-25G-240TB-PT* AMD EPYC 256 GB 240 TB 4x 1G/10G/25G SFP28
NX-LC-40G-24TB-PT* AMD EPYC 256 GB 24 TB 2x 40G QSFP+ / 8x 10G (Fan-out)
NX-LC-40G-51TB-PT* AMD EPYC 256 GB 51 TB 2x 40G QSFP+ / 8x 10G (Fan-out)
NX-LC-40G-102TB-PT* AMD EPYC 256 GB 102 TB 2x 40G QSFP+ / 8x 10G (Fan-out)
NX-LC-40G-240TB-PT* AMD EPYC 256 GB 240 TB 2x 40G QSFP+ / 8x 10G (Fan-out)
NX-LC-100G-24TB-PT* AMD EPYC 256 GB 24 TB 2x 100G QSFP28 / 2x 40G QSFP+ / 2x 25G (Adapter) / 8x 10G (Fan-out)
NX-LC-100G-51TB-PT* AMD EPYC 256 GB 51 TB 2x 100G QSFP28 / 2x 40G QSFP+ / 2x 25G (Adapter) / 8x 10G (Fan-out)
NX-LC-100G-102TB-PT* AMD EPYC 256 GB 102 TB 2x 100G QSFP28 / 2x 40G QSFP+ / 2x 25G (Adapter) / 8x 10G (Fan-out)
NX-LC-100G-240TB-PT* AMD EPYC 256 GB 240 TB 2x 100G QSFP28 / 2x 40G QSFP+ / 2x 25G (Adapter) / 8x 10G (Fan-out)
NX-LC-25G100G-24TB-PT* AMD EPYC 256 GB 24 TB 2x 100G QSFP28 / 2x 40G QSFP+ / 8x 10G (Fan-out) / 4x 1G/10G/25G SFP28
NX-LC-25G100G-51TB-PT* AMD EPYC 256 GB 51 TB 2x 100G QSFP28 / 2x 40G QSFP+ / 8x 10G (Fan-out) / 4x 1G/10G/25G SFP28
NX-LC-25G100G-102TB-PT* AMD EPYC 256 GB 102 TB 2x 100G QSFP28 / 2x 40G QSFP+ / 8x 10G (Fan-out) / 4x 1G/10G/25G SFP28
NX-LC-25G100G-240TB-PT* AMD EPYC 256 GB 240 TB 2x 100G QSFP28 / 2x 40G QSFP+ / 8x 10G (Fan-out) / 4x 1G/10G/25G SFP28

* With „-3Y“ for 3 year – or „-5Y“ for 5 year software subscription and hardware support

PacketFalcon UPGRADES

ARTICLE NO. DESCRIPTION
NX-LC-UPG-100G Upgrade of the PacketFalcon system to support 2x 100G.
Applicable for systems with already installed 40G capture cards like NX-LC-40G-xxxx-PT.
NX-LC-UPG-40G Upgrade of the PacketFalcon system to support 2x 40G.
Applicable for systems with already installed 25G capture cards like NX-LC-25G-xxxx-PT.
NX-LC-UPG-HSK Hard shell case with CNC milled foam for transport
